ASTM A234 WPB Carbon Steel Elbow Butt Weld Fitting to ASME B16.9

ASTM A234 WPB Carbon Steel Elbow Butt Weld Fitting to ASME B16.9

Product Overview & Key Specifications

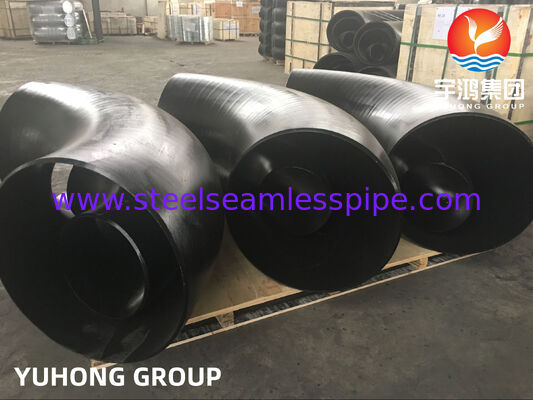

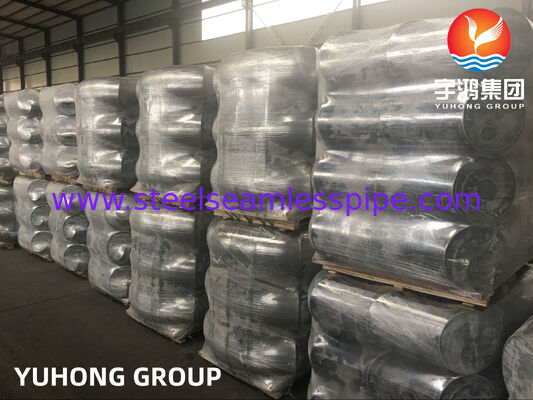

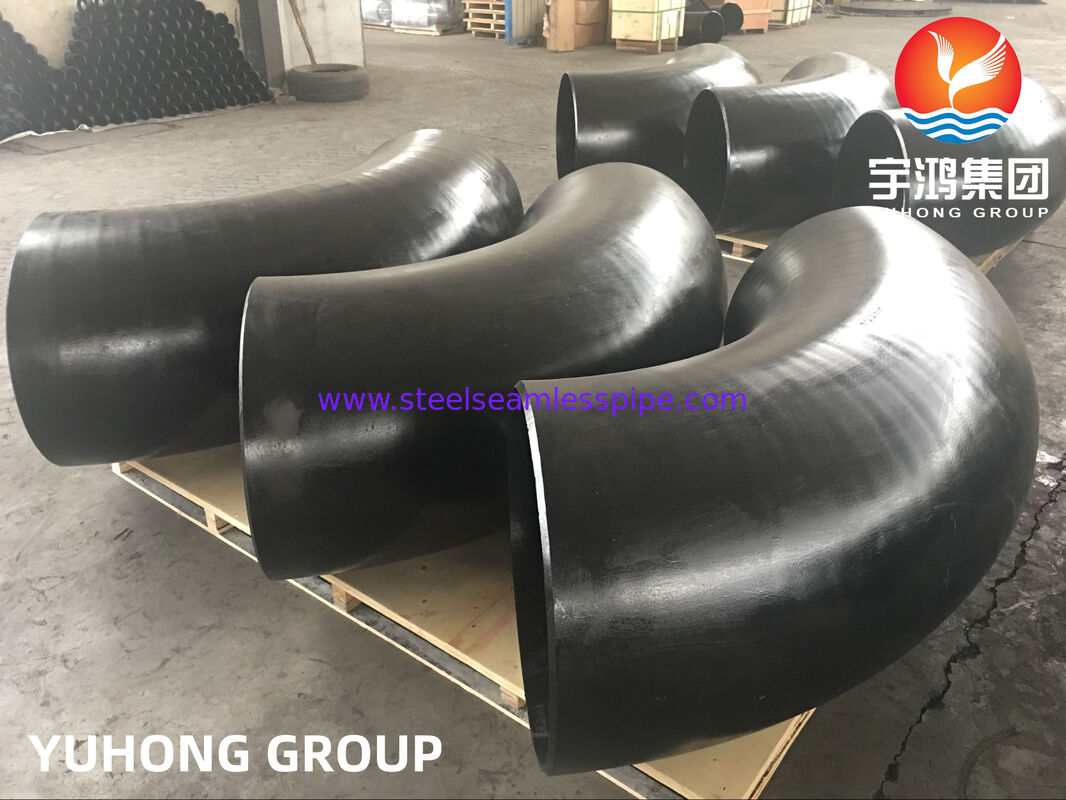

This product is a carbon steel butt-welding elbow, a fundamental pipe fitting used to change the direction of a piping system. It is manufactured to meet two critical international standards, ensuring reliability for industrial applications.

• Primary Material Standard: ASTM A234/A234M. This standard covers wrought carbon steel and alloy steel fittings for moderate and high-temperature service. The "WPB" is the specific material grade within this standard.

  • W stands for Weldable or Wrought.

  • P stands for Pressure.

  • B denotes the Grade with a specific minimum yield strength.

• Dimensional Standard: ASME B16.9. This standard defines the exact dimensions, tolerances, and ratings for factory-made wrought butt-welding fittings, ensuring perfect compatibility with matching pipes.

• Connection Type: Butt Weld (BW). The ends of the elbow are beveled to allow for seamless and strong welded integration into the pipeline, providing a permanent, leak-proof connection.

• Manufacturing Process: The fittings are wrought (forged and worked into shape) from materials like bars, plates, or seamless tubular products, which enhances their strength and structural integrity compared to cast fittings.

Material Composition: ASTM A234 WPB Chemical & Mechanical Properties

The WPB grade is a common carbon steel material specified for its balanced properties suitable for a wide range of temperatures and pressures.

The following table summarizes its key chemical and mechanical requirements as per the ASTM standard:

Common Types and Applications

• Common Types: Elbows are primarily categorized by their bending angle and radius.

  • By Angle: 90° (most common), 45°, and 180° return bends.

  • By Radius: Long Radius (LR, R=1.5D) for smoother flow and lower pressure drop, and Short Radius (SR, R=1.0D) for use in tight spaces.

• Typical Applications: These fittings are widely used in industries that require robust and leak-proof piping systems:

  • Oil & Gas transmission and processing.

  • Chemical & Petrochemical plants.

  • Power Generation, including thermal and nuclear plants.

  • Water and Steam Pipelines in various industrial facilities.

  • Shipbuilding and marine engineering.
