ASTM A213 TP316L Stainless Steel U TUBE For Boiler and Heat Exchanger

• YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

ASTM A213 TP316L Stainless Steel U TUBE For Boiler and Heat Exchanger

This product is a high-performance U-Tube specifically designed for boilers, superheaters, heat exchangers, and condensers operating under high-pressure, high-temperature, and corrosive environments. Manufactured from ASTM A213 TP316L, a low-carbon austenitic stainless steel, it offers superior corrosion resistance, high-temperature strength, and excellent formability and weldability, making it a critical component for thermal efficiency and long-term equipment reliability.

1.Chemical & Mechanical Properties

Mechanical Properties

Available Size Range

Outer Diameter (OD): Common range from 9.53mm (3/8") to 25.4mm (1"), other sizes available upon request.

Wall Thickness (WT): Common range from 0.8mm to 2.5mm (corresponding to different ODs).

U-Bend Radius (R): Customized according to customer design and tube bundle layout.

Straight Leg Length: Precisely cut as per customer drawings.

2. Key Advantages

•  Superior Corrosion Resistance

The addition of Molybdenum (Mo) in TP316L provides enhanced resistance to pitting and crevice corrosion compared to 304 series, making it ideal for chloride-containing environments.

• Ultra-Low Carbon Content

The "L" grade denotes a maximum carbon content of 0.030%, which minimizes the risk of carbide precipitation during welding and exposure to the sensitization temperature range (425-860°C), thus preventing intergranular corrosion.

• Excellent High-Temperature Properties

Maintains good mechanical strength and creep resistance at elevated temperatures, ensuring structural integrity under prolonged service.

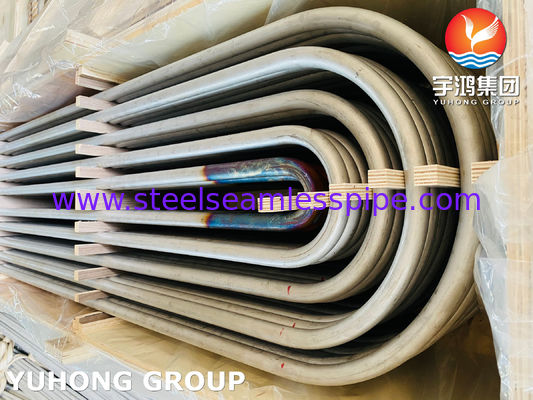

• Precision U-Bending Process

Advanced bending techniques ensure uniform wall thickness, no wrinkling, or excessive thinning at the U-bend. The smooth inner surface minimizes pressure drop and maintains consistent heat transfer efficiency.

3. Key Applications

Heat Exchanger (Shell-side less corrosive) —— To handle thermal expansion

Condenser / Seawater Cooler —— Resist chloride ion corrosion

Boiler / Superheater —— High-temperature strength & oxidation resistance

Petrochemical and Chemical Processing —— Resist intergranular corrosion after welding

----------------------------------------------------------------------------------------------------------------------------------------------------------------

 Why Choose Our 316L U-Tubes?

• Full Traceability: Each batch of materials has a complete material certificate to ensure compliance with standards and specifications.

• Superior Workmanship: Professional pipe bending technology ensures defect-free U-bends, extending equipment lifespan.

• Customized Solutions: We can provide precise customized production based on your specific drawings and technical requirements.

• Global Certifications: Our products conform to international standards such as ASTM, ASME, and EN, and serve customers worldwide.
